Glazed Tile Profile 41/1000 for roofing rolling machine

  • Glazed Tile Profile 41/1000 for roofing rolling machine
  • Glazed Tile Profile 41/1000 for roofing rolling machine
  • Glazed Tile Profile 41/1000 for roofing rolling machine
  • Glazed Tile Profile 41/1000 for roofing rolling machine

Glazed Tile Profile 41/1000 for roofing rolling machine

    Payment Type: L/C,T/T
    Min. Order: 1 Bag/Bags
    Delivery Time: 35 Days
    Packaging: Nude with wire fixed
    Productivity: each month 30 sets
    Brand: ZHONGTUO
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 30 set each month
    Certificate: CE, ISO, SOS,
    HS Code: 8455221000

Basic Info

Model No.: ZT-002

Product Description

Glazed Tile Profile 41/1000 for roofing rolling machine

Glazed Tile Profile 41/1000 for roofing rolling machine can be used to make the elegant appearance with the benefits of modern coated steel roofing sheet in batch and fully automatic.

We have to admit that classic pan tile form metal sheet that gives the appearance of traditional clay tiles. Standard width 1,000 mm width when lapped. Available in custom lengths up to any meters you need. Support range gauge (thickness) from 0.2 to 0.6mm. And for the color you can make any by this machine. Here is the drawing profile for your reference:


glazed tile sheet profile

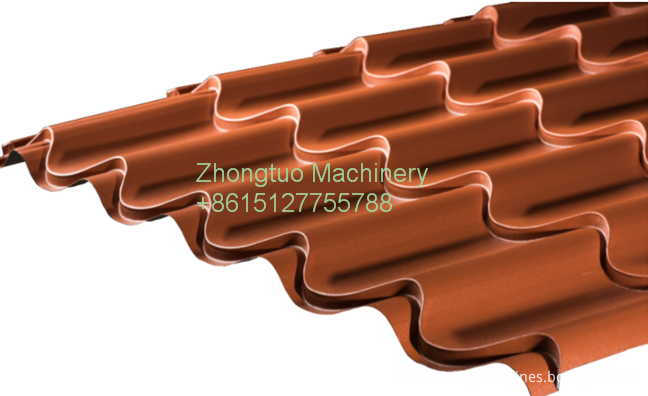

Finished products:

glazed tile sheet


Working Process of metal roofing rolling machine :

Uncoiling→ Feeding material into machine→ Roll forming→ Measuring length→ Step formed→ Auto cutting→ Products receiving

Installation of Glazed Tile Profile 41/1000 for roofing sheet:

installation of glazed tile sheet

Glazed Tile rolling machine design idea:

glazed tile making machine

metal roofing rolling machine



Main parameters of glazed tile making machine:

1

Length of the main part

About9500*1650*1500mm

2

Weight of main part

About 6.8 Ton

3

Voltage

380V/50HZ3Phase (as customer's request)

4

Roller fixer

Middle plate welded

5

Frame

Guide pillar and the thickness is 30mm

6

Frame thickness

25mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ90mm Solid shafts

11

Number of rollers

16 rollers

14

Main power

11kw(Simon motor )

15

Text screen displayer

Japan made

17

Forming speed

speed 3-5m/min

18

PLC Control system

Japan Panasonic PLC

19

Hydraulic power

5.5KW

20

Gear box

China famous brand

21

Chain

1.25inch

22

Delivery time

30 working days after receiving the deposit


Stepping part.

Features of Glazed Tile Profile 41/1000 for roofing rolling machine:

1. Working steady and it can reach speed of 5 to 7m per minutes.

2. Two edge no damage.

3. Fully automatic production line.

4. Save time and save electricity.

5. Totally customized according to customer requirements.

6. Long time to use and durable.

By this machine, you can create a light, strong roof cover with a surface requiring no maintenance; it provides an efficient way to create a traditional roof appearance with the benefits of modern coated steel. This elegant steel sheet looks great on new buildings and blends beautifully into older, culturally sensitive areas.
